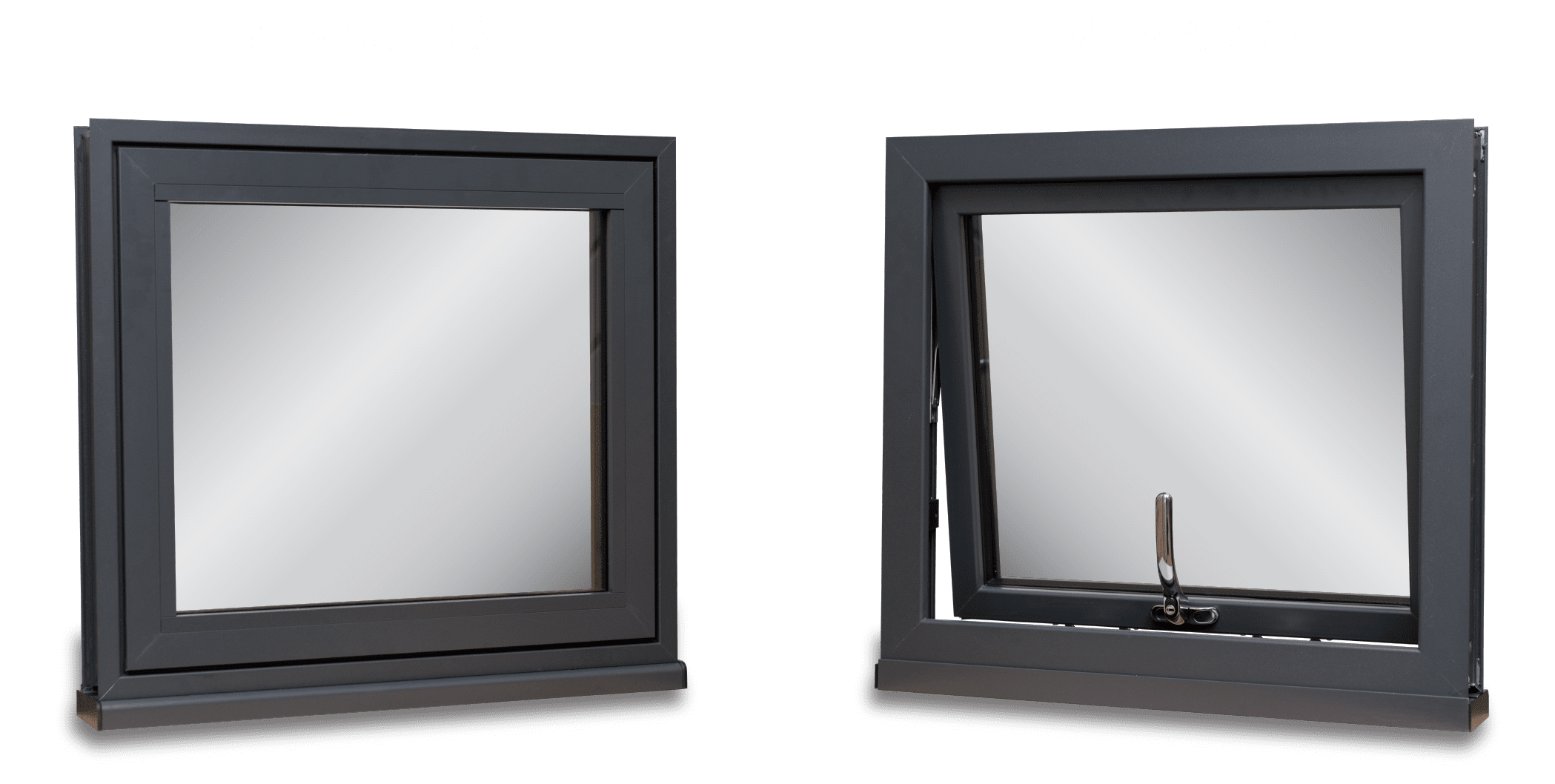

We set out to create a window design which is seamless in appearance. Sleek sightlines and fluidity. Viewed externally the opening sash sits level with the outer frame in the closed position providing a sight line which is much more appealing to the eye than a traditionally made casement window.

Designed for top or side hung opening-out windows, this unique window is manufactured exclusively by Affordable Aluminium Systems Ltd. and can be complemented with a wide selection of hardware to achieve the look you desire.

Key Features & Specifications:

  • High-Security bi-directional pincer multi-point mechanism with key lockable night vent position.
  • Fully compliant with Doc L of the Building Regulations (Conservation of Fuel and Power).
  • Compliance with Document Q
  • Window Energy Rating up to A
  • Concealed Night Ventilation available where required

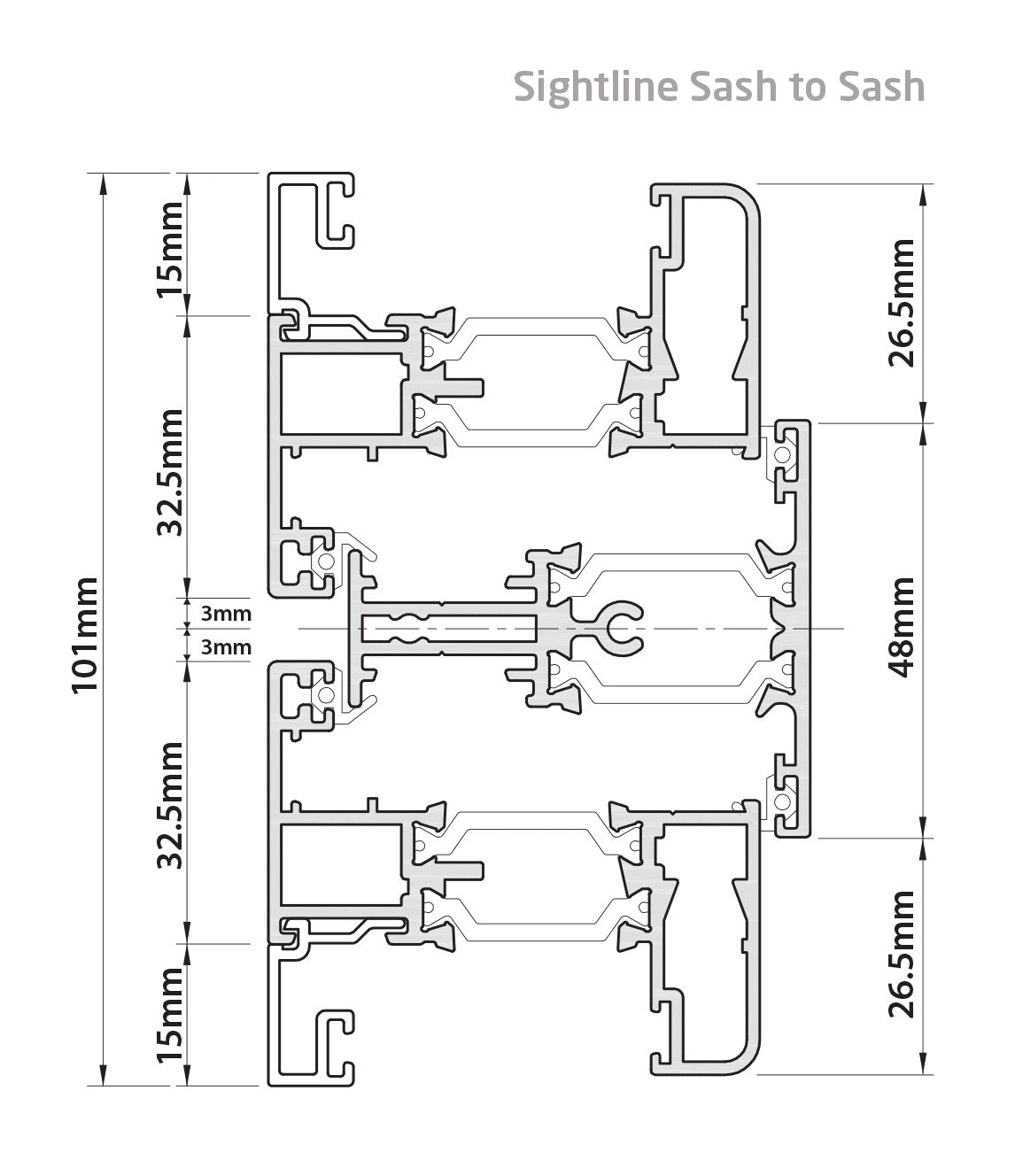

  • Concealed mullions and Transoms with slim sash to sash sightlines of just 102mm
  • The in-line flush look is a perfect match with our bifolding doors

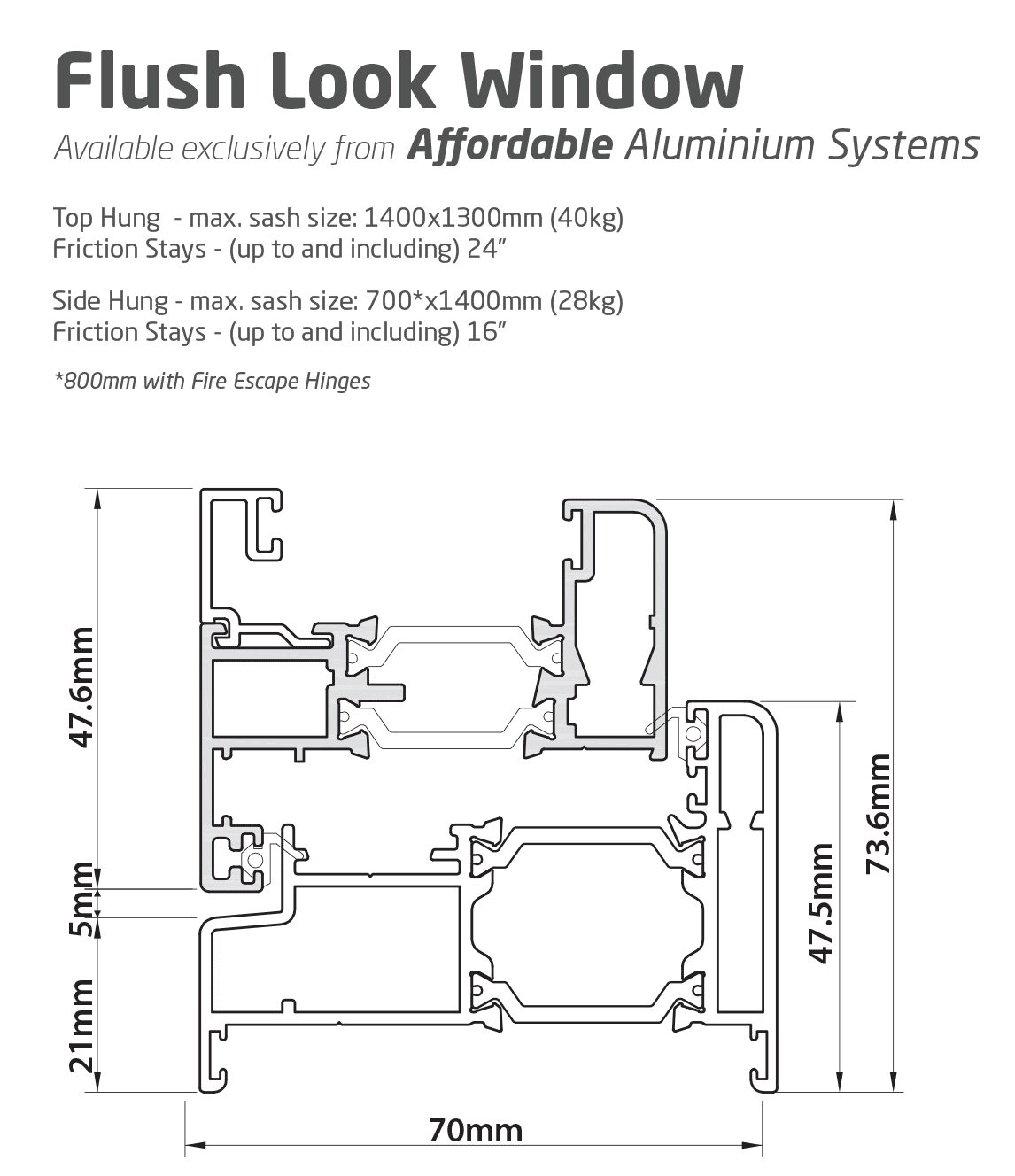

Sash Sizes

Top Hung – max. sash size: 1400x1300mm (40kg)
Friction Stays – (up to and including) 24”
Side Hung – max. sash size: 700*x1400mm (28kg)
Friction Stays – (up to and including) 16”
*800mm with Fire Escape Hinges



Hardware and Furniture

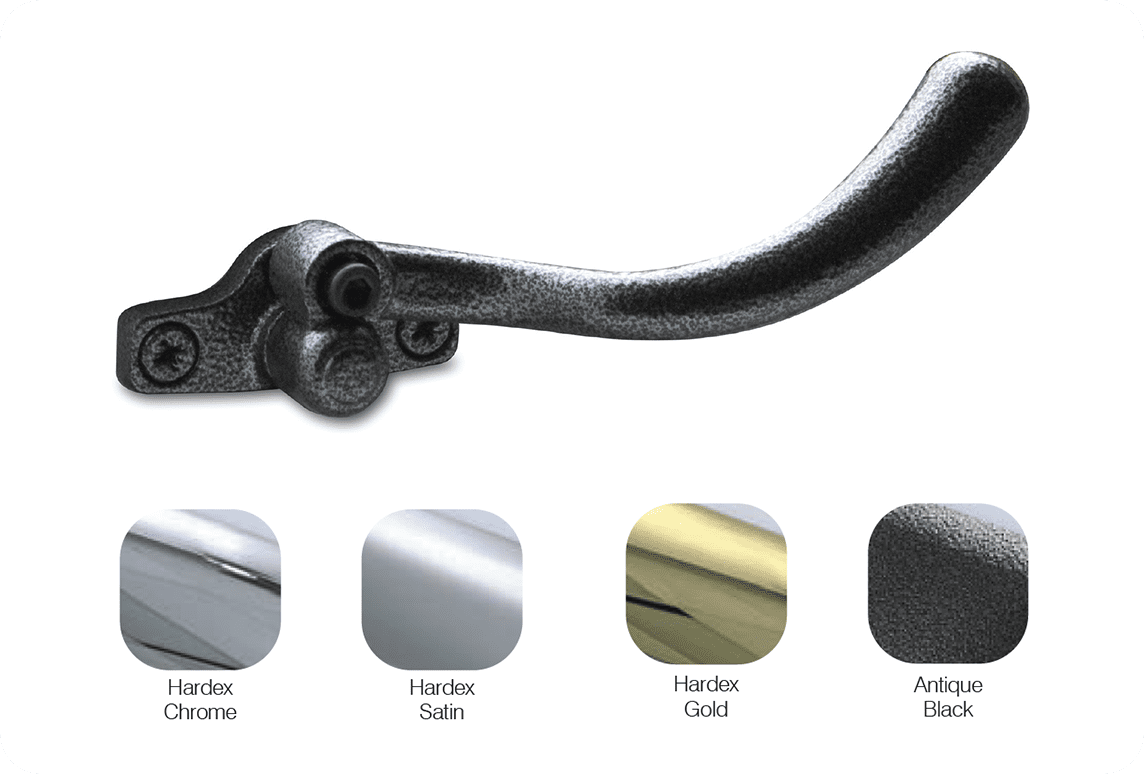

Our Tear Drop Handle, with an elegant design that has been inspired by traditional 19th century ironmongery, is the perfect finishing touch for the Flush Look Aluminium Window.

  • Classic finish to a heritage window
  • Strength tested to equivalent of a modern espagnolette window handle
  • Strong espagnolette operator
  • Manufactured from die-cast zinc with specially formulated finish
  • Harder wearing finish than traditional wrought iron furniture
  • Matching Tear Drop Dummy and Operating Stay also available
  • Create a perfectly matching heritage window
  • Key locking
  • Security enabled

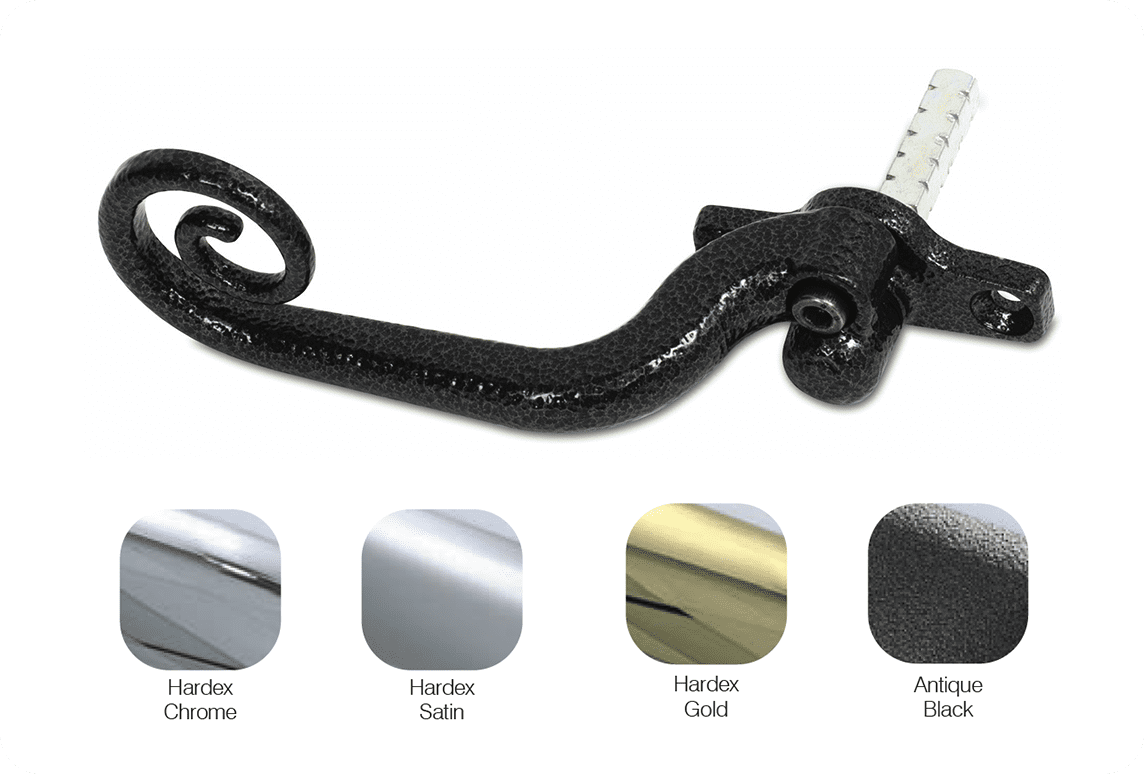

Monkey Tail Handle

  • Elegant design inspired by 19th-century ironmongery – Classic finish to a heritage window
  • Strength tested to equivalent of a modern espagnolette window handle
  • Stronger espagnolette operator
  • Manufactured from die-cast zinc with specially formulated finish
  • Harder wearing finish than traditional wrought iron furniture
  • Key locking
  • Security Enabled
  • Matching Monkey Tail Dummy Stay also available
  • Creating perfectly matching heritage window

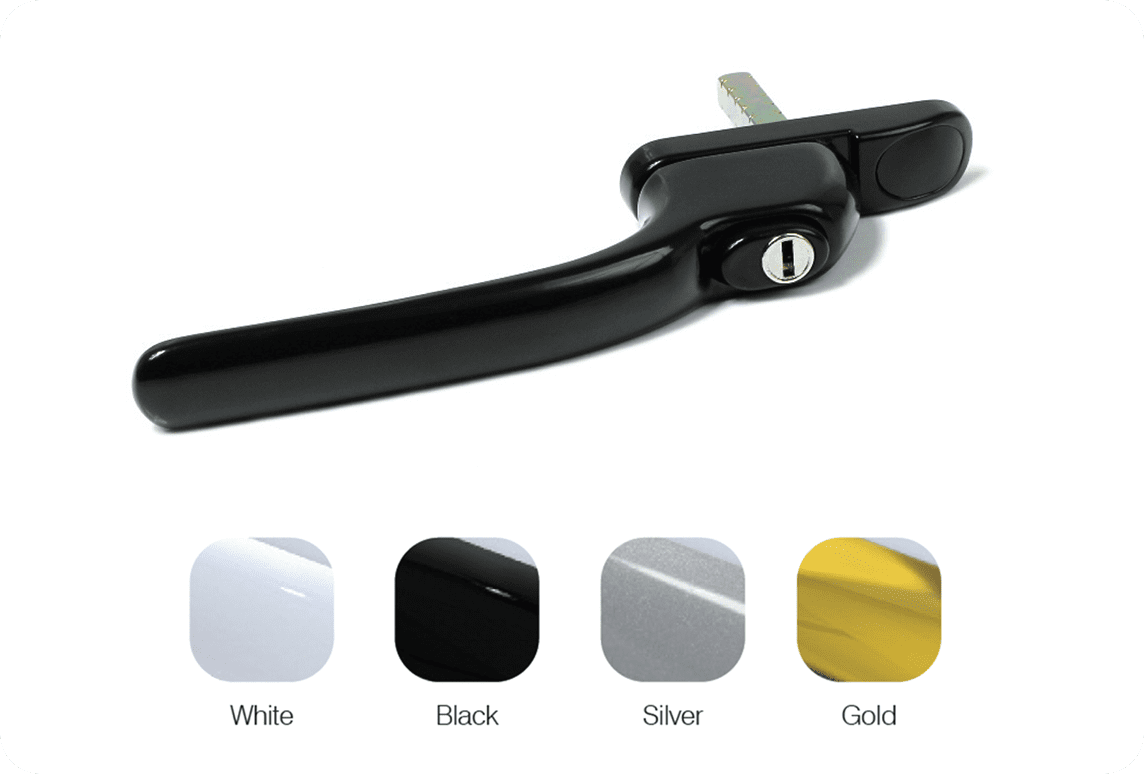

Espagnolette Handle

  • Die cast aluminium lever – The perfect balance of price and performance
  • Solid zinc baseplate – Stability and security
  • Heavy duty sprung latching block – Positive click on closing
  • Long handle with 50mm window clearance – Greater leverage and easy to operate without catching a hand on the window
  • Classic design with a contemporary twist – Create an elegant and stylish window
  • Patented cover caps with colour coordinated finish – Perfectly matching components, even down to the smallest details.
